Reference Design Kits

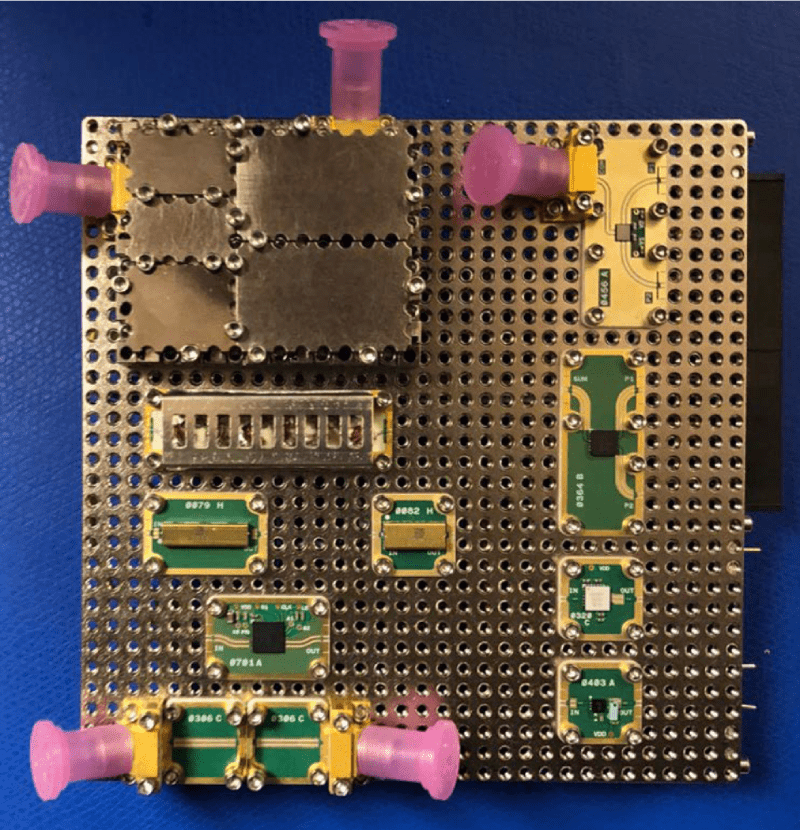

XM-RDK-200 | Getting Started Kit

X-MWblock Getting Started Kit
(Includes assembled plate, X-MWcontroller & tools)

XM-RDK-200 features a broad assortment of X-MWblocks from DC – 30 GHz including filters, a switch, splitters, amplifiers, and more. A complete PLL and VCO fully enclosed in X-MWwalls and X-MWlids provide a complete experience of the complete design platform. The PLL is programmed with the X-MWcontroller, altogether providing a ready-to-run, zero-install out of box experience. Visit the link below to request a quote or download the getting started guide.

Learn More about XM-RDK-200 >>

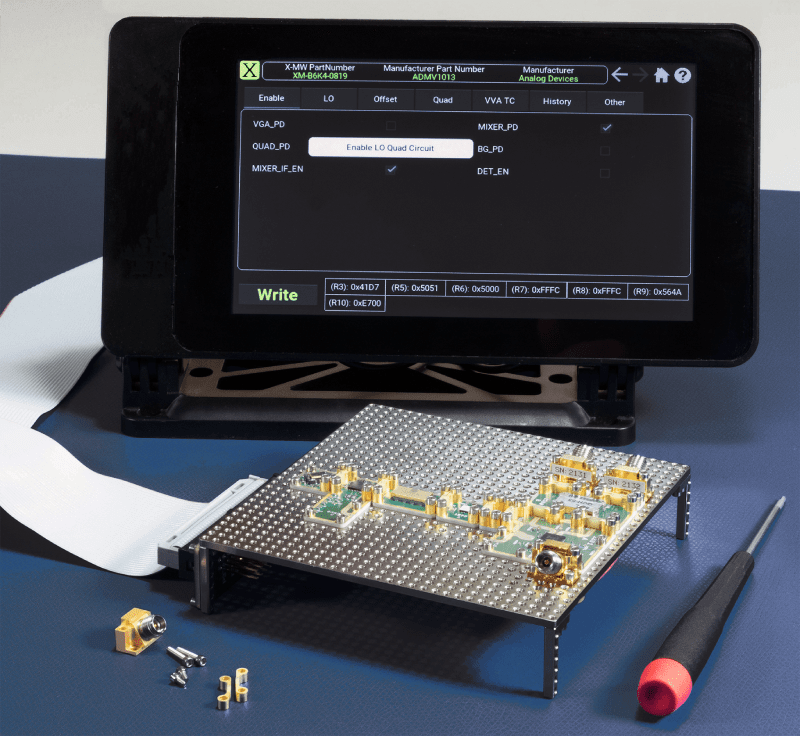

XM-RDK-201 | ADMV1013 – mmWave Upconverter Kit

ADMV1013 mmWave Upconverter Kit
(Includes assembled plate, X-MWcontroller & tools)

XM-RDK-201 features the Analog Devices ADMV1013, 24 GHz to 44 GHz, Wideband Microwave Upconverter. It also includes the Analog Devices ADF5356 PLL with integrated VCO as the LO source. Both parts are programmed with the X-MWcontroller, altogether providing a ready-to-run, zero-install out of box experience. Visit the link below to request a quote or download the getting started guide.

Learn More about XM-RDK-201 >>

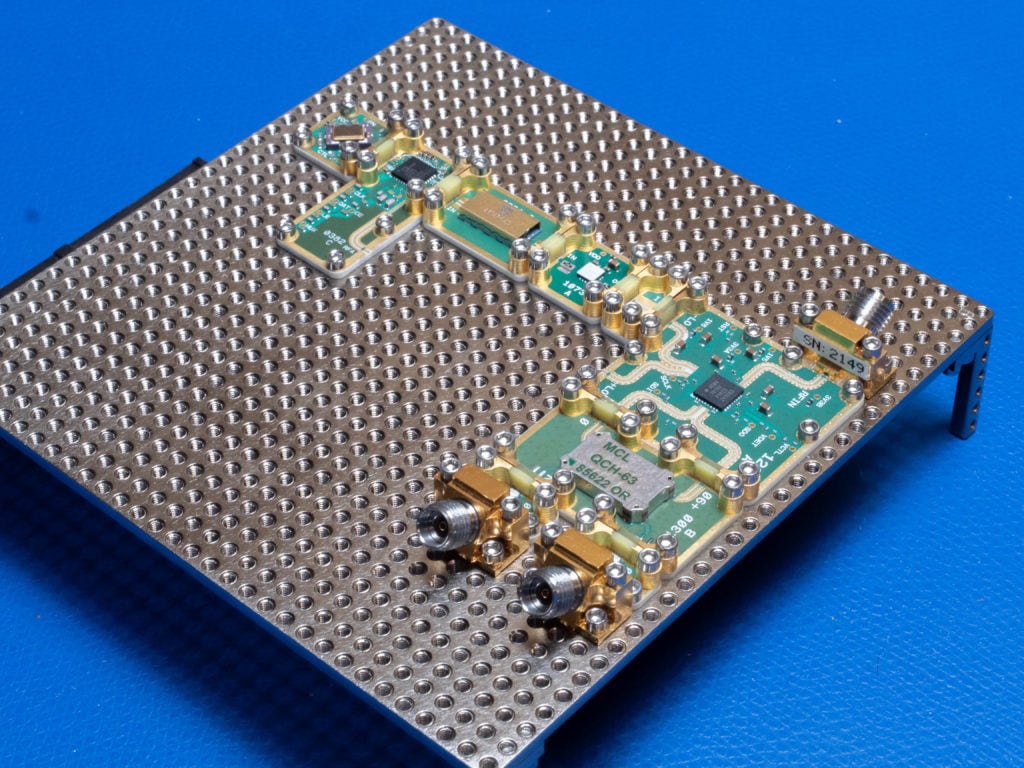

XM-RDK-202 | ADMV1014 – mmWave Downconverter Kit

ADMV1014 mmWave Downconverter Kit
(Includes assembled plate, X-MWcontroller & tools)

XM-RDK-202 features the Analog Devices ADMV1014, 24 GHz to 44 GHz, Wideband Microwave Downconverter. It also includes the Analog Devices ADF5356 PLL with integrated VCO as the LO source. Both parts are programmed with the X-MWcontroller, altogether providing a ready-to-run, zero-install out of box experience. Visit the link below to request a quote or download the getting started guide.

Learn More about XM-RDK-202 >>
